Smoke & Natural Ventilation Products
We Supply, Install, Maintain and Guarantee All Aspects of Our Products & Our Services. Building owners/managers, generally speaking, will need a mixture of both Smoke Ventilation solutions and Natural ventilation solutions. The products detailed below zone in on the most effective, efficient and safe smoke ventilation solutions for almost every buildings requirements
Actulux – Safety Controls
These control panels work in tandem with other ventiliation systems optimize their performance and adapt their behvaiour to the situation at hand, particularly in the case of emergency. These control panels can be attached to fire switches, smoke detectors, heat detectors, AFA systems and other forms of electronic ventiliation to ensure the comfort and safety of those utilizing it. A panel can be connected to up to 35 different panels to create a wide area network for large buildings or campuses. Each one comes with emergency protocols that activate at high temperatures and a built in 72 hour back up battery to deal with any potential power outtages which may occur. Controllers have been tested to EN 12101 and are compliant to it’s standards

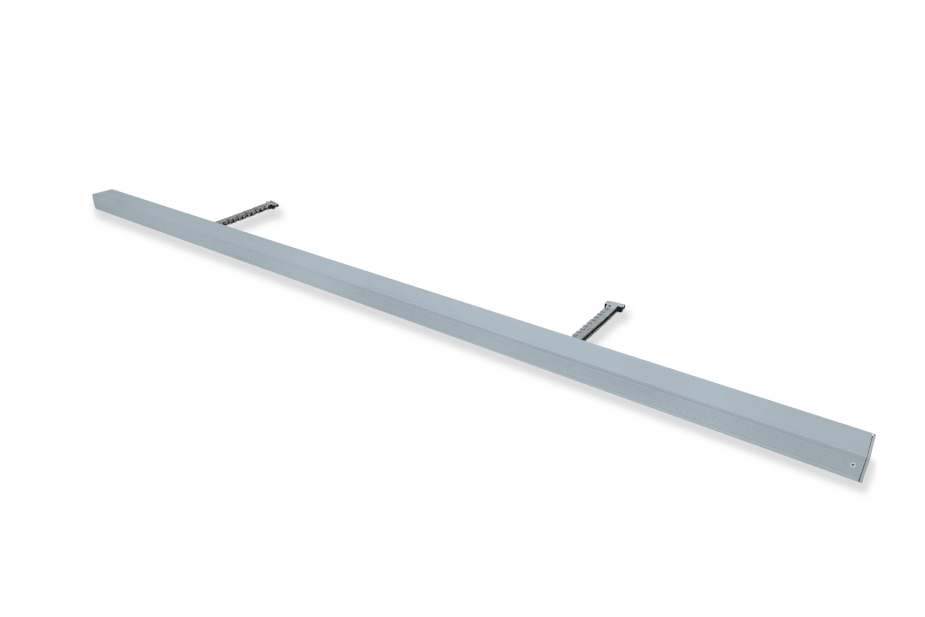

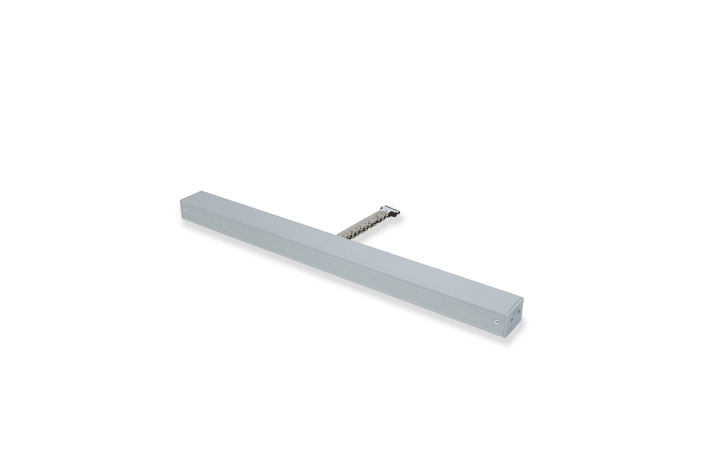

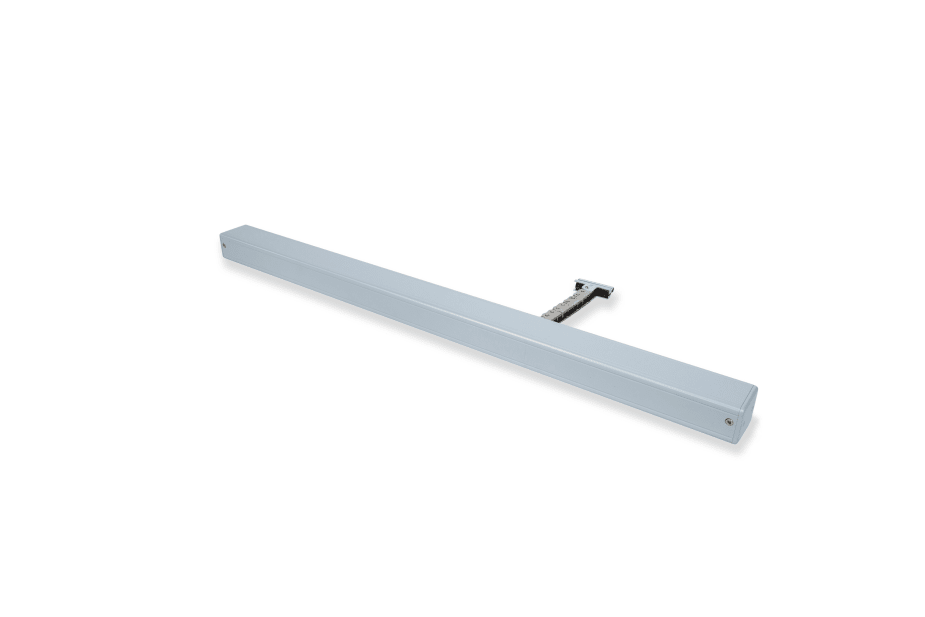

Actulux – Electronic Window Openers
Useful for roof windows, facades and skylights, these chain drive elctronic window openers are incredibly handy for managing windows that are typically difficult to reach. With a housing made of andomized aluminium and built in electric overload protection, these devices are lightweight and durable. Each one is programmable, allowing for different opening/closing speeds, widths and force depending on what is needed of the given window. They can also alternate between different opening and closing modes based on circumstance, increasing their moving speed when there is a need to ventilate smoke or heat. Motors have been tested to EN 12101 and are compliant to it’s standards.
Mardome – Smoke Vent Rooflight
Mardome Trade Smoke Vent Rooflights are individual polycarbonate domes intended for easy installation on flat roofs of all modern building types to provide natural smoke and heat exhaust, as well as comfort ventilation. Designed, fully tested and certified in accordance with EN 12101-2, they meet standards for safety, security, non-fragility and fire safety and we offer the full guarantee of an established, accredited UK manufacturer
OSLOOP CONTROL SYSTEM
The coordinator distributes power and data to the networked system fully monitoring primary (mains) and secondary (72 hour battery) power supplies. The OSLoop system intelligently monitors current requirements of the system and determines how and when the MCPs can call on this power to activate AOVs. Each MCP contains actuator switching circuitry which also monitors the actuator cabling and circuitry for faults. If a fault is detected, then the MCP raises a local alarm and also informs the coordinator so the remote alarms can be triggered. The MCP also provides support for one or more smoke detectors. Again this circuitry monitors the detectors and cabling checking for faults. In addition the MCP can be configured as master/slave device to other MCPs in the same system. Features • 40% less cable costs than a conventional system • 50% less devices compared to conventional systems • Reduced system installation time • prEN12101-9 and fully EN12101-10 compliant • EMC tested to EN61000-6-2 and EN61000-6-3 • LVD tested to EN60335-1 as amended by EN60335-2-103.
FAN CONTROL PANEL
Variable Speed Product Details The SE Controls Variable Speed Fan Control Panel is a fixed modular design that is built and tested to provide a method of operating a single 415V three phase 50HZ duty/standby fan arrangement. The Variable Speed Fan Control Panel has the following features: • Industrial PLC logic driven system • Duty fan and standby fan control • Multiple fan speed control via industrial inverter enabling fire fighting and/or means of escape operational mode • External fire fighters key switch control (auto/off, auto/boost) • Simple hard wired activation or more involved network signal activation • Multiple panels can be networked together creating highly specialised multiple fan operation for multiple shafts • Reversible fan operation if required for twin shaft/triple shaft push/pull systems • Pressure sensor monitoring to prevent excessive negative pressure in the activated zone • Ability to utilise duty/standby fans as NV fans for day to day operation • Ability to power additional single phase or three phase NV fans • Ductwork damper(s) control • System state indication on panel face via LED’s • Activation/healthy vfc’s for BMS monitoring • Fan panel status can be viewed via associated SHEVTEC repeater panel Fixed Speed Product Details The SE Controls Fixed Speed Fan Control Panel is a fixed modular design that is built and tested to provide a method of operating a single 415V three phase 50HZ duty/standby fan arrangement The Fixed Speed Fan Control Panel has the following features: • Duty fan and standby fan control • External fire fighters key switch control (auto/off) • Simple hard wired activation • Pressure sensor switch input for changeover under Duty fan fail • System state indication on panel face via LED’s • Activation/healthy volt free contacts for BMS monitoring • Fan panel status can be viewed via associated SHEVTEC repeater panel
OS2 SHEVTEC 30A PSU PANEL
Operating from a 110/230V ac supply, the SHEVTEC 30A PSU Panel can deliver 30 Amps to drive 24 Volt motorised actuators and magnetic catches. SHEVTEC 30A PSU Panel can be mounted in a centralised location. Each 30A SHEVTEC Panel can operate independently or can be linked to others to produce a networked control system. The networked control system in turn can operate standalone or be linked to a building management system. The panel is also available in 60A/90A/120A/150A and multi-zone versions.
